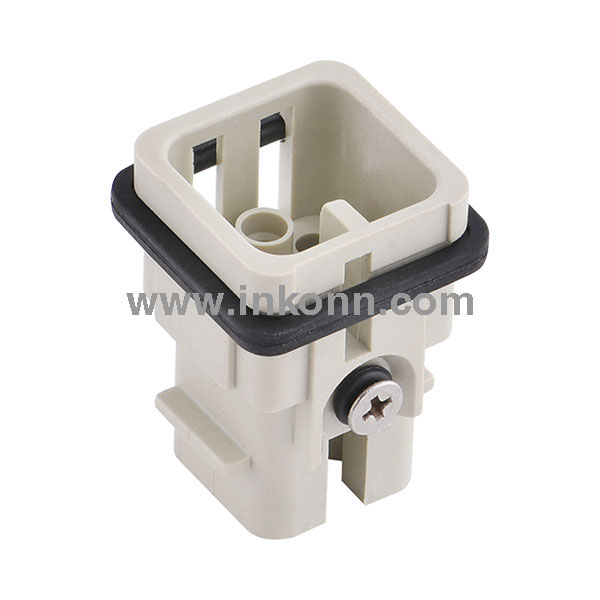

Image is for illustration purpose only. Please refer to product description.
Technical Data:
Identification
-
Category:Inserts
-
Series:ID
-
Size:A03
-
Nr. Contacts:7+PE
-
Gender:Male
-
Options:FPM
Technical characteristics
-
Connection 1 Type:Crimp
-
Rated Current(IEC):10A
-
Rated Voltage(IEC):250V
-
Rated Impulse Voltage:4kV
-
Conductor Cross-section:0.14-2.5mm²
-
Contact Resistance:<3mΩ
-
Insulation Stripping Length:Please refer to crimp contact data
-
Screw Tightening Torque:See EN 60947 -1 table
-
Overvoltage Category:III
-
Pollution Degree:3
Material properties
-
Material(insert):Polycarbonate (PC)
-
Colour(insert):Pebble Grey (RAL 7032)
-
Material Flammability Class Acc. To UL 94:V-0
-
Limiting temperature:-40…+125°C
-
Insulation resistance:>1010Ω
-
Insulation Material Group:IIIa
-
Mating Cycles:≥500
-
Material(Contact):Copper alloy
-
Surface(Contact):Silver
-
ContactSeries:CD
Specifications and Approvals
-
CE:Yes
-
RoHS:Compliant with exemption
-
China RoHS:Compliant with exemption
Download
-
Technical Data:
- 2D Drawing:
- 3D Data:
-
HDC Brochure:
-
HDC Full Catalogue:
Commercial date
-
Country of Origin:China
-
European Customs tariff number:85366990
